How to pair a Yealink YEA-RT30 repeater
In this article, it will show you step-by-step instructions on the set up and pairing process of the YEA-RT30 repeater.
Initial set up

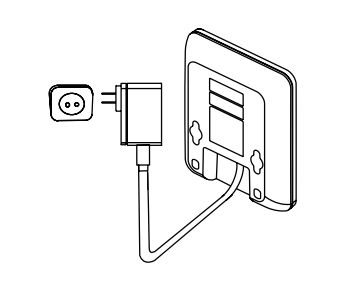

- Connect the RT30 to a power outlet using the provided AC power adapter.

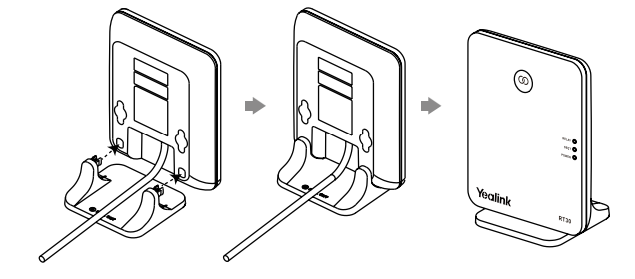

- Connect the base stand with the snap-fits to the corresponding holes and push forward.
Registering the Yealink YEA-RT30 repeater
- For the initial pairing, move the RT30 repeater next to the W60/70B DECT base and plug it into a power outlet. The POWER LED should turn solid green and the DECT LED should begin flashing red.
- Set the handset in RT30 repeater mode at with the path: Settings-> System Settings-> Repeater Mode. (The handset should ask if you want to reboot the base now as that is required for this setting to take effect. Select "Yes" instead of manually rebooting the base, as not doing so has caused issues preventing the repeater from pairing in the next step.)
- The W60/70B DECT base station should have rebooted after selecting "Yes" from the previous step. Once its lights are all back on and solid green, put the W60/70B DECT base in registration mode by pressing and holding the paging key on the base station until the first LED begins flashing green. If the base station is found, the DECT LED on the RT30 should start flashing orange. When DECT LED turns green/orange, the registration to base station is successful.
You can now move the RT30 to the optimal location to extend the range of the handsets. When the DECT LED is green it is indicating strong signal, while orange is weaker. If the DECT light goes red, it may be too far away from the W60/70B DECT base to be effective.

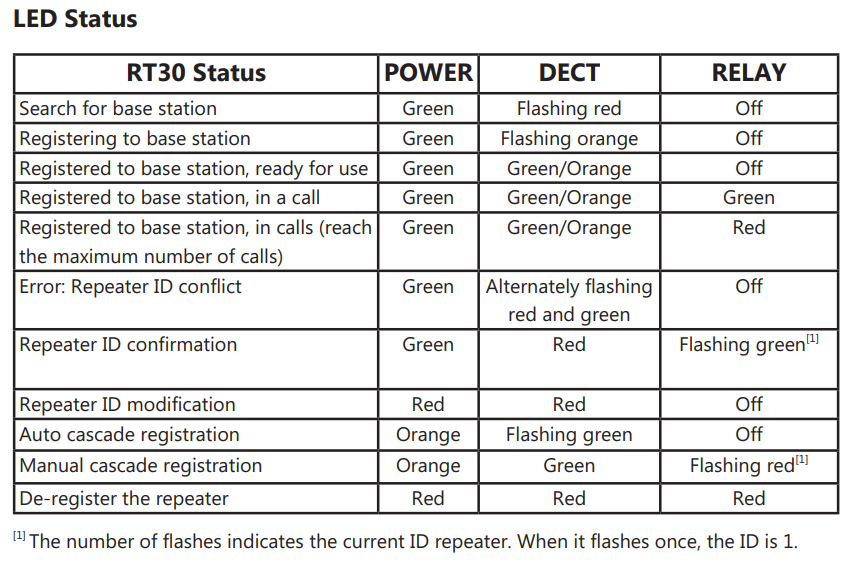

Light LED meaning:
