- First follow this guide to connect the Cyberdata to the amplifier. http://files.cyberdata.net/support/devicecompatibility/documentation/931669A_TOA_BG-2035_2060_2120_to_SIP_Paging_Adapter.pdf
- Ensure that you follow the dipswitch settings. Function Switches A is the one on top with 5 switches. Function Switches B is the lower bottom with 10 switches. Refer to Figure A.
- In Function Switches B, find the appropriate line in for your BGM in switches 1-5, and ensure this switch is turned on to automute the music when a page is in progress. Refer to Figure A.
- Turn the Mic knob on the front of the amplifier one notch above 0 and turn the Line1/Tel knob to change the volume output. Refer to Figure B.

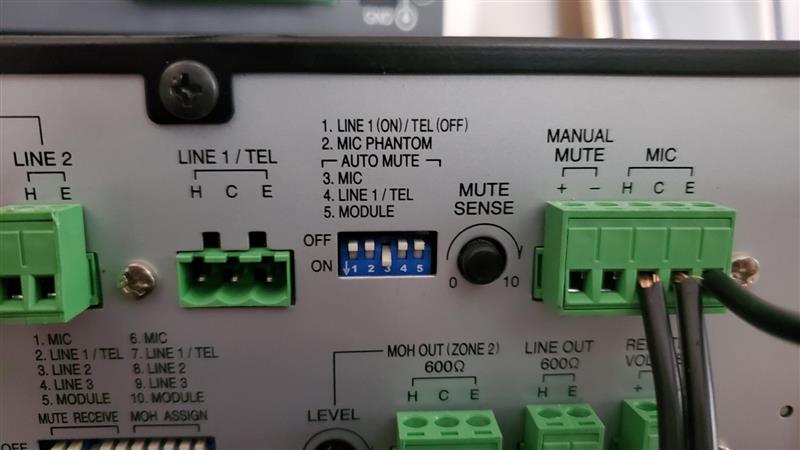

Figure A

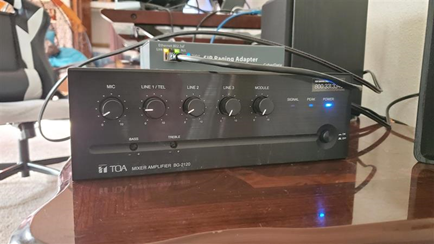

Figure B

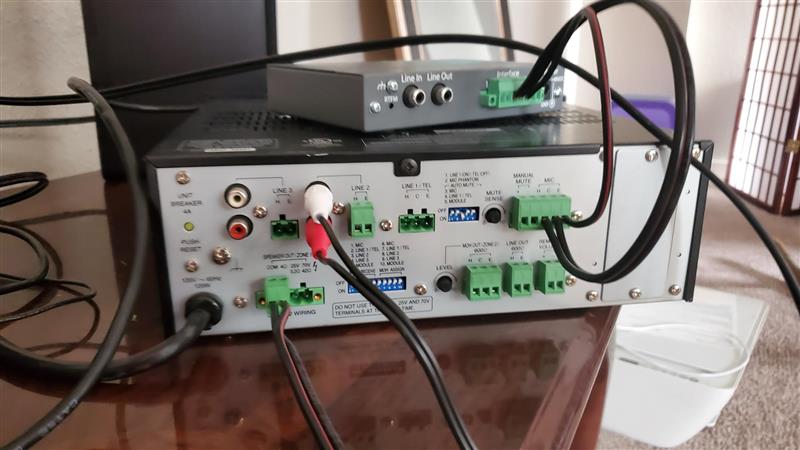

Figure C
Figured D
